Low - Noise Round Automatic Sliding Door Motor Brushless Of 12VDC And 40W

Low Noise High Quality Round Brushless Automatic Sliding Door Motor of 12VDC and 40W

Description:

This Brushless motor provides power for automatic sliding doors, with silent operation, has big torque, long service life and high efficiency. It adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output, it can adapt to a large doors. Helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.

Code: 418 Type: Brushless Operation Voltage: 24VDC Power: 40W Rotate Direction: CW &CCW

Application: Automatic door Door Open style: Sliding Opening type: With Remote Control

Functional: Automatic operation/hold-open/closed/half-open

Security: Automatic stop/reverse during opening or closing

Door Weight Bearable: 300kg /2 Leaves Door Width: 650~1600mm

Environment temperature: -20 ~ +50ºC Lifetime: 6 million times

Applications:

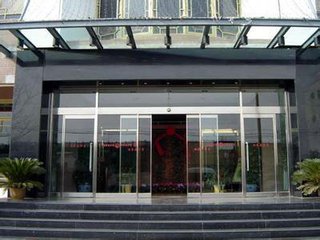

This Electric sliding door motor can be used on any kinds of Automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital, which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building, etc.

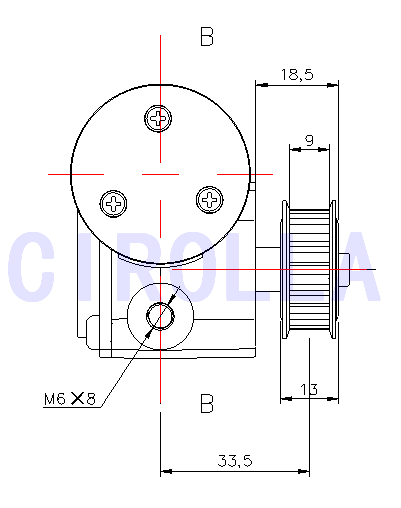

Outline drawings of Electric Sliding Door Motor:

Low Noise Automatic Sliding Door Motor

40W Brushless Gear Motor

12VDC Brushless Gear Motor

Low - Noise Round Automatic Sliding Door Motor Brushless Of 12VDC And 40W Images
